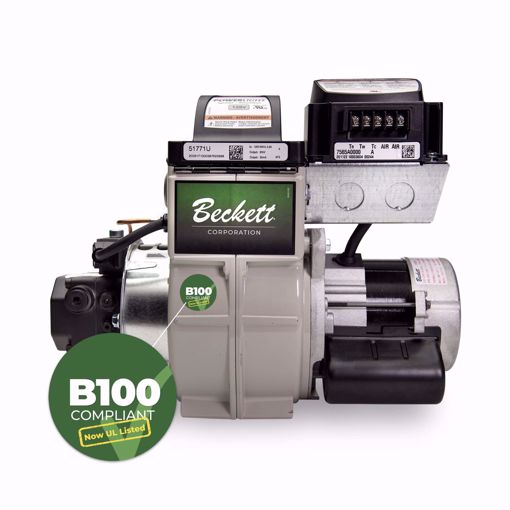

BR100 AF/AFG OIL AND RENEWABLE FUELS BURNER 0.40 TO 3.00 GPH 115v REPLACES B2007

Manufacturer: Beckett

Includes GeniSys® 7565 with programmable pre and post purge, PF20323 - Single Stage. Does not include Blast Tube and Flange. REPLACES B2007

SKU: BECKETT:BR100

Product Availability: 4

$543.44

This product must be purchased in increments of 1

Qty:

i h

DOES NOT INCLUDE MOUNTING FLANGE DOES NOT INCLUDE BLAST TUBE AND ASSEMBLY

Capacities

0.40 to 3.00 gph
56,000 to 420,000 BTU/hr input

Fuels

ASTM D396 FOR #1 & #2 Heating oil
ASTM D396 for B6 – B20 Biodiesel blends
ASTM D975 for Diesel fuel, Renewable diesel
Biodiesel blends of D396 & D6751 to B100
CAN / CGSB -3.2 for Heating oil Types 0, 1, and 2

Fuel Unit

Beckett CleanCut ®: Single or Two Stage standard

Motor

1/7 HP 3450 rpm PSC type

Igniter

Beckett PowerLight® Solid state
Rated for continuous duty

Control

Beckett GeniSys® Model 7565
myTechnician app for programming and diagnostics

Dimensions (Standard)

Height: 11-1/2″
Width: 12-7/8″
Depth: 6-9/16″

Dimensions (with Cover)

Height: 12-1/2″
Width: 15″
Depth: 9-1/4″

Electrical Characteristics

Power Supply: 120 VAC, 60Hz, Single Phase
Operating Load:
- 5.8 Amps maximum @ 120 VAV
- 240 VAC – Available (Contact factory)

Flame Retention Heads

Flame retention head shape and help regulate the combustion process. Beckett has a wide selection of options to obtain the best performance in any application.

Available Accessories

Part Number	Description
5432	Adjustable Flange & Gasket
5850	Split Flange & Gasket
5685	Pedestal Mounting Kit
5606	Pedestal Mounting Kit — Extended Pedestal Kit for 8” - 13” above floor
5207301U	Burner Cover Kit with Split Mounting Plate — sound-reducing and tamper-resistant
CAK-APU	Air Boot Kit with Air Proving - Must use with 7565 GeniSys Control
CAK-APU	Air Boot Kit with Air Proving - Must use with 7565 GeniSys Control
CAK-APU	Air Boot Kit with Air Proving - Must use with 7565 GeniSys Control
51621	Start Helper - smoother light-off for cold fuel conditions

Products specifications

Manufacturer	Beckett
Voltage	120 Volt AC
